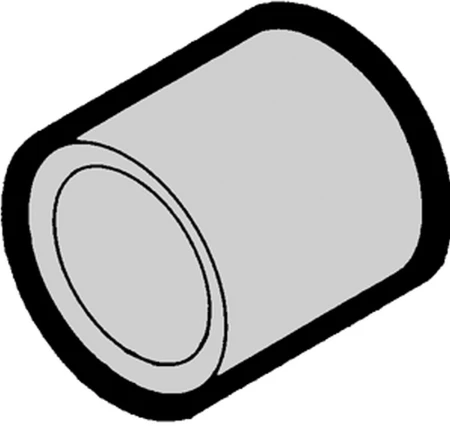

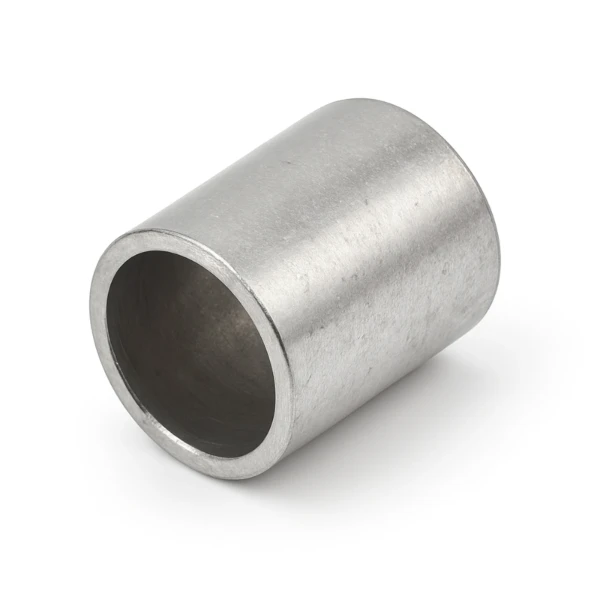

▶ Crimp splices for copper conductor
220003 - P-1210
Package type: BG á 100 PCE
Product specifications : 220003 - P-1210
Nominal cross section (mm²)
2.63 - 6.64
Min. AWG-size
14
Max. AWG-size
10
Model
UL model
Sleeve form
Short
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
None
Voltage level
Up to 600 V
Type of connection
Parallel connector
For pull protected connections
No
Oil stop/centre bar
No
Nominal current (A)
50
(mm)
8.5
(mm)
3.5
(mm)
5.4
No
