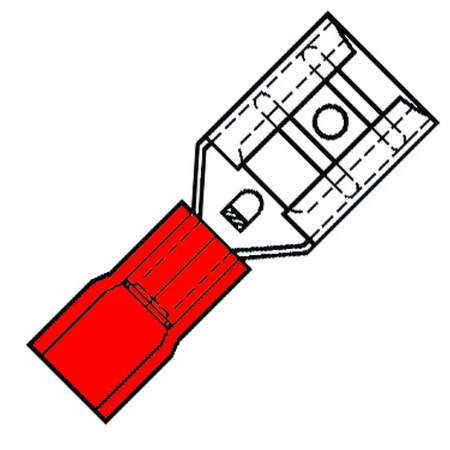

▶ Blade Terminal Sleeve

100010 - SP 0503 FL5

Package type: BX á 100 PCE

Geïsol. vlakstekerhuls 2,8x0,5mm, 0,5-1,5 mm2, PVC

Product specifications : 100010 - SP 0503 FL5

Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 2.8x0.5 mm
Insulation
Partially isolated
Colour insulation
Red
Material insulation
Polyvinyl chloride (PVC)
With cam clamp
Yes
With tap spreader
No
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
No
No
Transparent
No
(mm)
19
(mm)
2.8
(mm)
4
(mm)
0.5
Yes
Yes
No
(°C)
105
(V)
600
Watertight
No
Reel/roll packaging
No
Right-angled
No
No
No

Variants

100020 - SP 0503 FL8
0.34 - 1.66
22
16
Flat 2.8x0.8 mm
Red
10
19
2.8
4
0.8
100040 - SP 1504 FL5
0.34 - 1.66
22
16
Flat 4.8x0.5 mm
Red
10
19
4.8
4
0.5
100050 - SP 1504 FL8
0.34 - 1.66
22
16
Flat 4.8x0.8 mm
Red
10
19
4.8
4
0.8
100100 - SP 1507 FL
0.34 - 1.66
22
16
Flat 6.3x0.8 mm
Red
10
21
6.3
4
0.8
100380 - SP 2504 FL5
1.04 - 2.66
16
14
Flat 4.8x0.5 mm
Blue
15
19
4.8
4.5
0.5
100390 - SP 2504 FL8
1.04 - 2.66
16
14
Flat 4.8x0.8 mm
Blue
15
19
4.8
4.5
0.8
100460 - SP 2507 FL
1.04 - 2.66
16
14
Flat 6.3x0.8 mm
Blue
15
21
6.3
4.5
0.8
100490 - SP 2508 FL
1.04 - 2.66
16
14
Flat 7.7x0.8 mm
Blue
15
23
7.7
4.5
0.8
101000 - SP 4607 FL
2.63 - 6.64
12
10
Flat 6.3x0.8 mm
Yellow
24
25
6.3
6.5
