Connection techn.

▶ Vlakstekerhulzen

153105 - SP4609 FL-NY

Package type: BX á 100 PCE

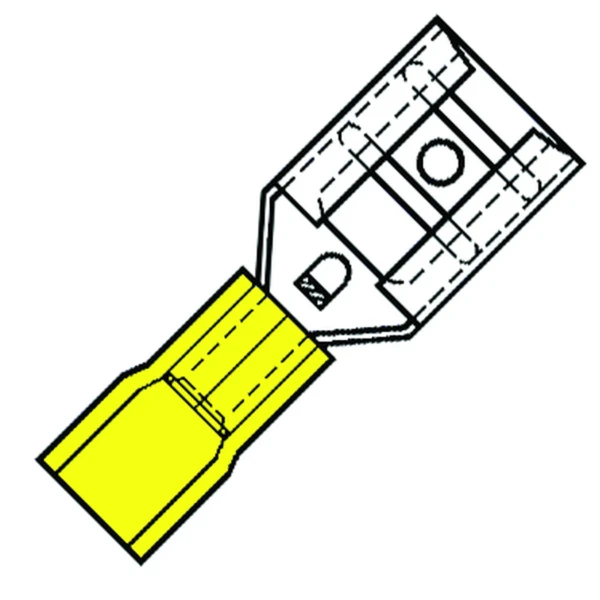

Geïsol. vlakstekerhuls, 4,0-6,0 mm2, Easy, Nylon

Product specifications : 153105 - SP4609 FL-NY

Model
Bushing
Nominal cross section (mm²)
2.63 - 6.64
Min. AWG-size
12
Max. AWG-size
10
Plug dimensions
Flat 9.5x1.2 mm
Insulation
Partially isolated
Colour insulation
Yellow
Material insulation
Polyamide (PA)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
24
Halogen free
Yes
No
(mm)
28.5
(mm)
9.5
(mm)
6.5
(mm)
12
Yes
Yes
No
(°C)
105
(V)
600
Reel/roll packaging
No

Variants

151000 - SP 0503 FL5-NY
0.34 - 1.66
22
16
Flat 2.8x0.5 mm
Red
10
15.5
2.8
3.6
151010 - SP 0503 FL8-NY
0.34 - 1.66
22
16
Flat 2.8x0.8 mm
Red
10
15.5
2.8
3.6
151020 - SP 1504 FL5- NY
0.34 - 1.66
22
16
Flat 4.8x0.5 mm
Red
10
19.5
4.8
3.6
151030 - SP 1504 FL8-NY
0.34 - 1.66
22
16
Flat 4.8x0.8 mm
Red
10
19.5
4.8
3.6
151040 - SP 1507 FL-NY
0.34 - 1.66
22
16
Flat 6.3x0.8 mm
Red
10
21.5
6.3
3.6
152000 - SP 2503 FL5-NY
1.04 - 2.66
16
14
Flat 2.8x0.5 mm
Blue
15
19
2.8
4.3
152010 - SP 2503 FL8-NY
1.04 - 2.66
16
14
Flat 2.8x0.8 mm
Blue
15
19
2.8
4.3
152020 - SP 2504 FL5-NY
1.04 - 2.66
16
14
Flat 4.8x0.5 mm
Blue
15
20
4.8
4.3
152030 - SP 2504 FL8-NY
1.04 - 2.66
16
14
Flat 4.8x0.8 mm
Blue
15
20
4.8
4.3
152040 - SP 2507 FL-NY
1.04 - 2.66
16
14
Flat 6.3x0.8 mm
Blue
15
22
6.3
4.3
