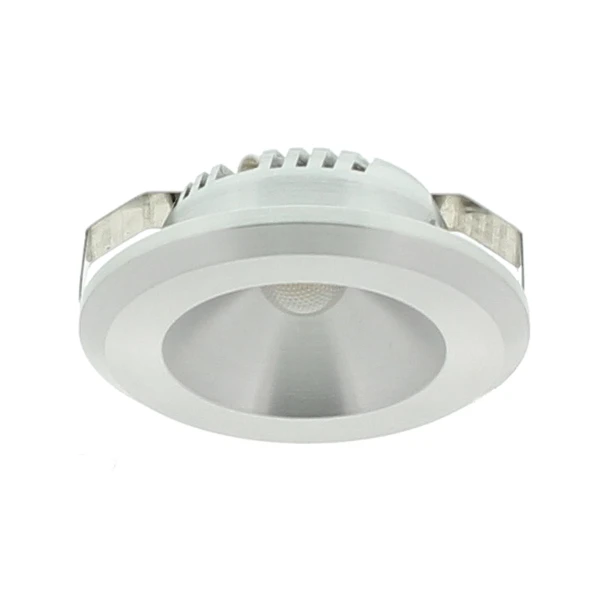

▶ Malabo
863622 - LCB-IB-SM-WW
Package type: CT á 1 PCE
Product specifications : 863622 - LCB-IB-SM-WW
Spot
Mounting method
Built-in
Colour temperature (K)
3000 - 3000
Colour of light adjustable
No
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Beam angle
Extreme wide beam >80°
Beam angle (°)
90
Height/depth (mm)
14
Outer diameter (mm)
48
Built-in diameter (mm)
32 - 32
Housing colour
Aluminium
Degree of protection (IP), front side
IPX0
IP20
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Adjustability
not adjustable
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
(cm)
100
Light distributor
Reflector
Light outlet
Direct
Number of poles
2
Exchangeable control gear
Yes
Beam angle adjustable
No
Lamp power (W)
3.3
With presence indicator
No
Dimmable
Yes
