▶ Borealis, 13W, Lens
868518 - LED-13W-LS30-EWW
Package type: CT á 1 PCE
Product specifications : 868518 - LED-13W-LS30-EWW
Spot
Housing colour
White
Shape
Round
Operating current (mA)
0 - 350
Voltage type
DC
Lamp voltage (V)
35.3 - 35.3
Luminous flux (lm)
0 - 1337
(lm)
0 - 1337
Suitable for constant voltage
No
Suitable for constant current
Yes
External driver required
Yes
Colour temperature (K)
2700 - 2700
Number of LEDs
1
Colour
White
Connection type
Other
(cm)
100
Optics
Lens
Diameter (mm)
48
Length (mm)
48
Width (mm)
48
Height (mm)
82
Built-in diameter (mm)
48
Degree of protection (IP)
IP20
(mm)
44
Energy efficiency class according to EU regulation 2019/2015
E

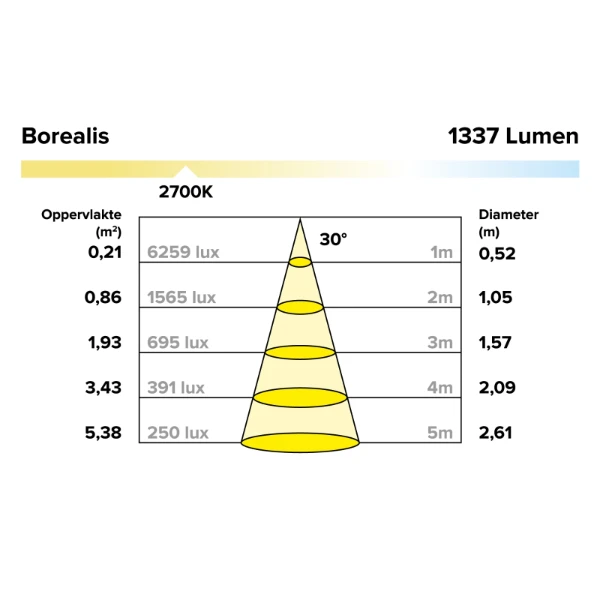

Beam angle (°)
30 - 30
Lamp power (W)
12.4 - 12.4
Dimmable
Yes
Average nominal lifespan (h)
50000
Colour of light according to EN 12464-1
Warm white <3300 K
Colour rendering index CRI
80-89
Colour consistency (McAdam ellipse)
SDCM1
Specific luminous efficacy (lm/W)
0 - 108
Operating voltage (V)
35.3 - 35.3
IFTTT support available
No
Suitable for matrix information boards
No
Suitable for traffic lights
No
Suitable for rail traffic
No
Suitable for general lighting
Yes
Suitable for variable road signs
No
Accessories
Variants
868520 - LED-13W-LS30-WW
35.3 - 35.30 - 1350
0 - 1350
3000 - 3000
E
Warm white <3300 K
0 - 109
35.3 - 35.3
868522 - LED-13W-LS30-NW
35.3 - 35.30 - 1385
0 - 1385
4000 - 4000
E
Neutral white 3300-5300 K
0 - 111
35.3 - 35.3
