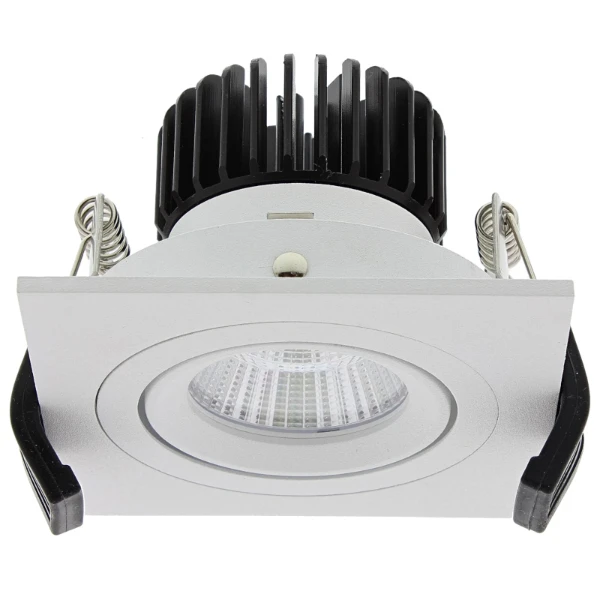

▶ Bolero, 7W
868677 - LD-7W-VK90-WW
Package type: CT á 1 PCE
Product specifications : 868677 - LD-7W-VK90-WW
Spot
Mounting method
Built-in
Colour temperature (K)
3000 - 3000
Nominal current (mA)
0 - 700
Nominal voltage (V)
9.5 - 9.5
Voltage type
DC
Max. system power (W)
6.6
Beam angle
Medium beam 21-40°
Beam angle (°)
30
Built-in depth (mm)
62
Length (mm)
90
Width (mm)
90
(mm)
44
Built-in diameter (mm)
82 - 82
Housing colour
White
Suitable for lamp power (W)
6.6 - 6.6
Adjustability
Rotating and swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
Yes
Colour of light
White
Housing material
Aluminium
Reflector
High-gloss
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Reflector
Yes
(cm)
50
Dimming phase cut-on
No
Light distributor
Reflector
Light outlet
Direct
Number of poles
2
With mounting bracket
No
Dimming phase cut-off
Yes
Accessories
