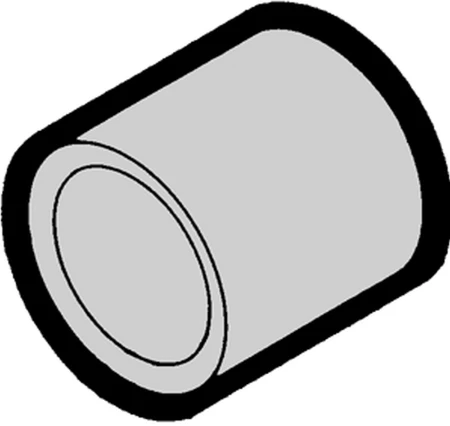

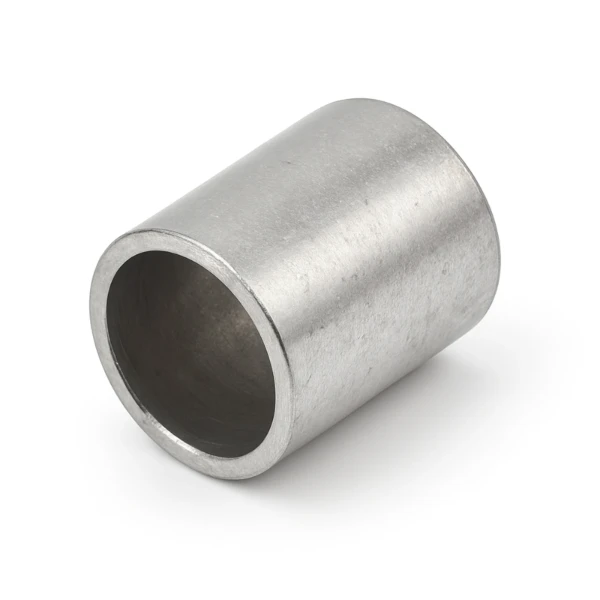

▶ Parallel Connector

220005 - P-14

Package type: BG á 100 PCE

Ongeïsol. parallelverbinder, 16 mm2

Product specifications : 220005 - P-14

Nominal cross section (mm²)
16 - 16
Min. AWG-size
6
Max. AWG-size
6
Model
UL model
Sleeve form
Short
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
None
Voltage level
Up to 600 V
Type of connection
Parallel connector
For pull protected connections
No
Oil stop/centre bar
No
Nominal current (A)
95
(mm)
11
(mm)
5.8
(mm)
8.9
No

Variants

220001 - P-2216
0.34 - 1.65
22
16
18
8
1.7
3.3
220002 - P-1614
1.04 - 2.63
18
14
30
8
2.3
3.9
220003 - P-1210
2.63 - 6.64
14
10
50
8.5
3.5
5.4
220004 - P-8
10 - 10
8
8
70
9.5
4.5
7
220006 - P-22
25 - 25
4
4
125
13.5
7.7
11.3
220007 - P-38
35 - 35
2
2
170
16.5
9.4
13.2
220008 - P-50
50 - 50
1
1
230
19
11.4
15.3
220009 - P-70
70 - 70
00
00
265
19
13.3
17.5
220011 - P-95
95 - 95
000
000
310
19.5
15.5
19.5
