840007 - LIGHTGUARD/KL

Package type: CT á 1 PCE

Opbouw schemerschakelaar 230V 10A lux instelbaar, DCF tijdschakelklok

Product specifications : 840007 - LIGHTGUARD/KL

Model
Surface mounting
Type of sensor
Built-in light sensor
Mounting method
Surface mounted (plaster)
Relay
Colour
Grey
RAL-number (similar)
7030
Engaging brightness (lx)
5 - 300
Switching-off brightness (lx)
10 - 600
Yes
Switch-off delay (s)
60
Switching-on delay (s)
60
Yes
Max. switching power (W)
2300
Max. switching power LED (W)
400
(W)
1 - 400
(VA)
1 - 900
Max. switching current (resistive load) (A)
10
(W)
1 - 2300
(W)
0.5
Suitable for C-load
Yes
With automatic night switch-off
Yes
Material
Plastic
Nominal voltage (V)
230
Voltage type
AC
Suitable for degree of protection (IP)
IP54

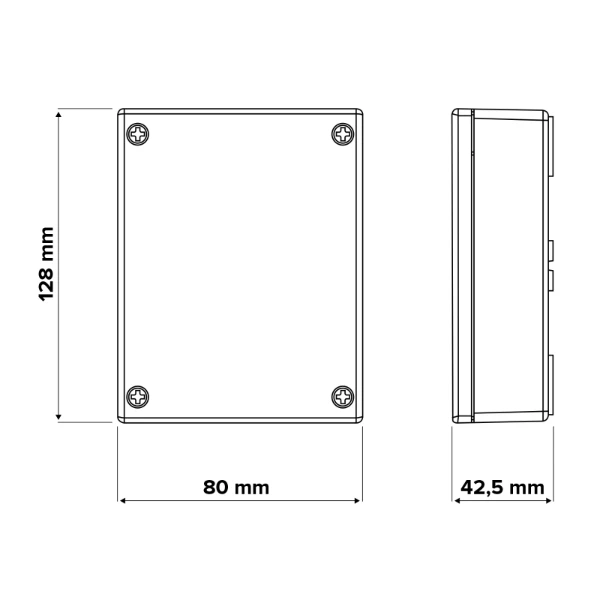

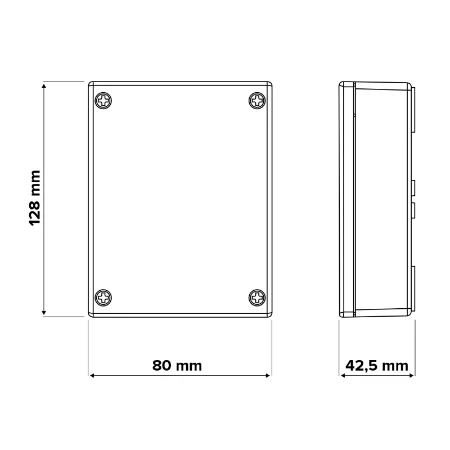

Length (mm)
128
Width (mm)
80
Height (mm)
42
Swivelling
No
With DALI interface
No

Variants

840000 - LIGHTCON
White
5 - 1000
5 - 5
60
60
1000
400
1 - 900
10
1 - 1000
No
230
AC
IP55
95
74
45
840005 - LIGHTGUARD
Grey
5 - 10000
10 - 20000
60
60
2300
200
1 - 200
1 - 1500
10
1 - 2300
No
230
AC
IP55
128
74
95
840010 - EUROSWITCH
Grey
5 - 10000
20 - 20000
180
180
3800
1500
1 - 1500
1 - 120
16
1 - 3800
No
230
AC
IP55
95
74
45
840012 - EUROSW-12VDC
Grey
1 - 300
5 - 600
180
180
120
40
1 - 40
1 - 150
10
1 - 120
No
12
DC
IP55
95
74
45
840013 - EUROSW-12VAC
Grey
1 - 300
5 - 600
180
180
150
50
1 - 50
1 - 150
16
1 - 150
No
12
AC
IP55
95
74
45
840015 - EUROSW-24VDC
Grey
1 - 300
5 - 600
180
180
240
60
1 - 60
1 - 1000
10
1 - 240
No
24
DC
IP55
95
74
45
840016 - EUROSW-24VAC
Grey
1 - 300
5 - 600
180
180
300
100
1 - 100
1 - 1000
16
1 - 300
No
24
AC
IP55
95
74
45
840020 - EUROSWITCH-110V
Grey
1 - 300
5 - 600
180
180
1500
500
1 - 500
16
1 - 1500
No
110
AC
IP55
95
74
45
840030 - EUROSWITCH-130V
Grey
1 - 300
5 - 600
180
180
1700
60
1 - 600
16
1 - 1700
No
130
AC
IP55
74
45
