▶ Constant current

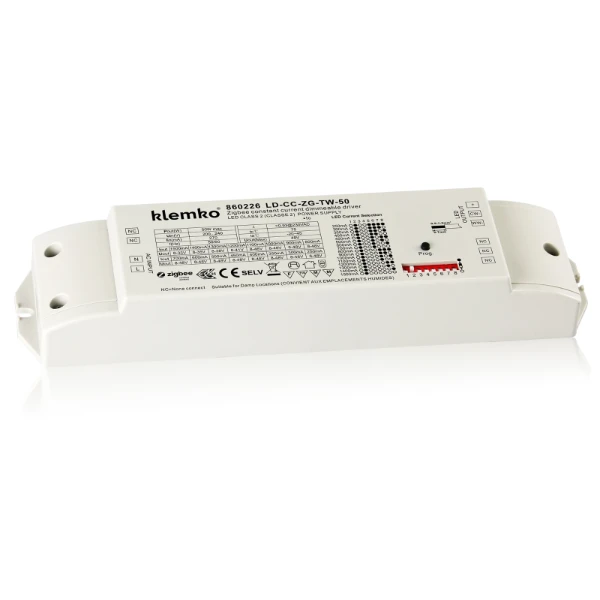

860226 - LD-CC-ZG-TW-50
Package type: CT á 1 PCE
Product specifications : 860226 - LD-CC-ZG-TW-50
Protocol
Zigbee
Model
Dynamic
Output power (W)
1 - 50
Housing
Plastic housing
Suitable for constant voltage
No
Output voltage (V)
8 - 48
Input voltage (V)
110 - 277
Suitable for DC-voltage (primary side)
No
Suitable for constant current
Yes
Output current (mA)
250 - 1500
Yes
(mA)
250
Degree of protection (IP)
IP20
Suitable for outdoor use
No
Length (mm)
210
Width (mm)
50
Height (mm)
32
Rated frequency (Hz)
50 - 60
Ambient temperature (°C)
-20 - +45
White
No
No
Frequency input voltage (Hz)
50 - 60
Independently operating
Yes
Yes
Overload protection
Yes
Yes
Overtemperature protection
Yes
Yes
Yes
Short-circuit protected
Yes
No
None
Dimmable
Yes
Operation by Bluetooth
No
Dimming DALI-2
No
Compatible with Casambi
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming manufacturer's proprietary system
No
Dimming 1-10 V
No
Dimming LineSwitch
No
Dimming phase cut-on
No
Dimming DALI
No
Dimming programmable
Yes
Dimming Sine Wave Reduction
No
Dimming DMX
No
Dimming mains voltage modulation
No
Constant light output (CLO)
No
Dimming Touch and Dim
No
Dimming DSI
No
Dimming Zigbee
Yes
Dimming phase cut-off
No
Dimming 0-10 V
No
Dimming with push-button
No
No
Accessories
Variants
860004 - LD-CC-1-10V-32
1 - 10 V2 - 32
2 - 53
220 - 240
250 - 900
Yes
250
103
67
21
0.95
8
-25 - +50
White
32
1 - 13
1 - 3
1 - 5
1 - 4
Yes
Yes
3 - 100
Yes
860006 - LD-CC-1-10V-38
DALI13 - 38
10 - 45
120 - 277
300 - 1050
Yes
300
146.5
44
30
0.95
1
-25 - +40
White
9.1
3 - 13
3 - 8
2 - 4
2 - 4
Yes
0.1 - 100
860008 - LD-CC-CS-MO-38
DALI1 - 38
10 - 54
120 - 277
300 - 1050
Yes
1050
146.5
44
30
0.95
0.09
-25 - +45
White
3 - 16
1 - 14
2 - 5
2 - 5
Yes
Yes
Yes
10 - 100
