▶ Constant current
860600 - LD-CC20W-800-DA
Package type: BG á 1 PCE
Product specifications : 860600 - LD-CC20W-800-DA
Protocol
DALI
Model
Dynamic
Output power (W)
1 - 20
Power consumption (W)
3
Housing
Plastic housing
Suitable for constant voltage
No
Output voltage (V)
3 - 40
Input voltage (V)
200 - 240
Suitable for DC-voltage (primary side)
No
Suitable for constant current
Yes

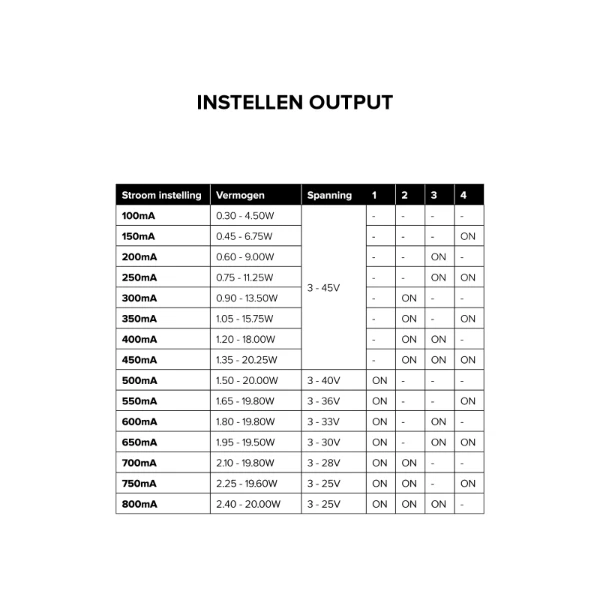

Output current (mA)
100 - 800
Yes
Degree of protection (IP)
IP20
Protection class
II
Suitable for outdoor use
No
Length (mm)
110.1
Width (mm)
40
Height (mm)
21
Ambient temperature (°C)
-20 - +50
White
No
Number of channels
1
1 - 8
1 - 4
1 - 2
Frequency input voltage (Hz)
50 - 60
Independently operating
Yes
Yes
Overload protection
Yes
Yes
Overtemperature protection
Yes
Yes
Yes
Short-circuit protected
Yes
No
None
Dimmable
Yes
Operation by Bluetooth
No
Dimming DALI-2
Yes
IFTTT support available
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
Dimming potentiometer (integrated)
No
Compatible with Apple HomeKit
No
Dimming RF
No
Dimming manufacturer's proprietary system
No
Dimming 1-10 V
No
Dimming LineSwitch
No
Dimming phase cut-on
No
Dimming DALI
Yes
Dimming programmable
Yes
Dimming Sine Wave Reduction
No
(%)
1 - 100
Dimming DMX
No
Dimming mains voltage modulation
No
Constant light output (CLO)
No
Dimming Touch and Dim
No
Dimming DSI
No
Dimming Zigbee
No
Dimming phase cut-off
No
Dimming 0-10 V
No

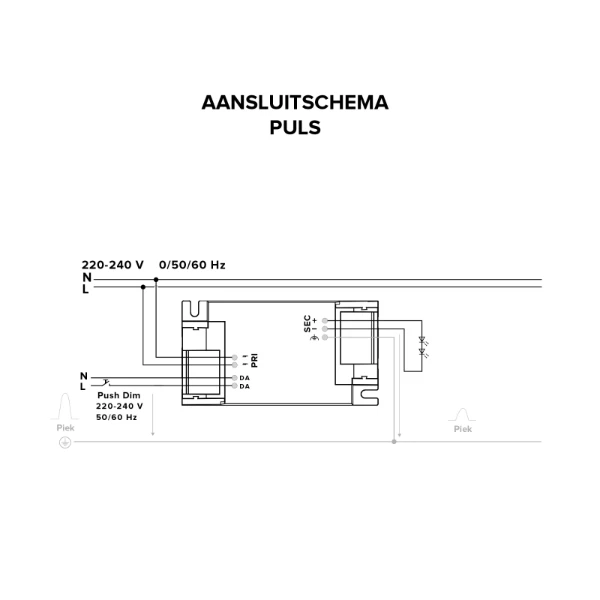

Dimming with push-button
Yes
Variants
860004 - LD-CC-1-10V-32
1 - 10 V2 - 32
2 - 53
220 - 240
250 - 900
Yes
250
103
67
21
0.95
8
-25 - +50
White
32
1 - 13
1 - 3
1 - 5
1 - 4
No
No
No
Yes
Yes
No
3 - 100
No
Yes
860006 - LD-CC-1-10V-38
DALI13 - 38
10 - 45
120 - 277
300 - 1050
Yes
300
146.5
44
30
0.95
1
-25 - +40
White
9.1
3 - 13
3 - 8
2 - 4
2 - 4
No
No
No
No
Yes
No
0.1 - 100
No
No
860008 - LD-CC-CS-MO-38
DALI1 - 38
10 - 54
120 - 277
300 - 1050
Yes
1050
146.5
44
30
0.95
0.09
-25 - +45
White
3 - 16
1 - 14
2 - 5
2 - 5
Yes
No
Yes
Yes
No
No
10 - 100
No
No
