▶ Siena

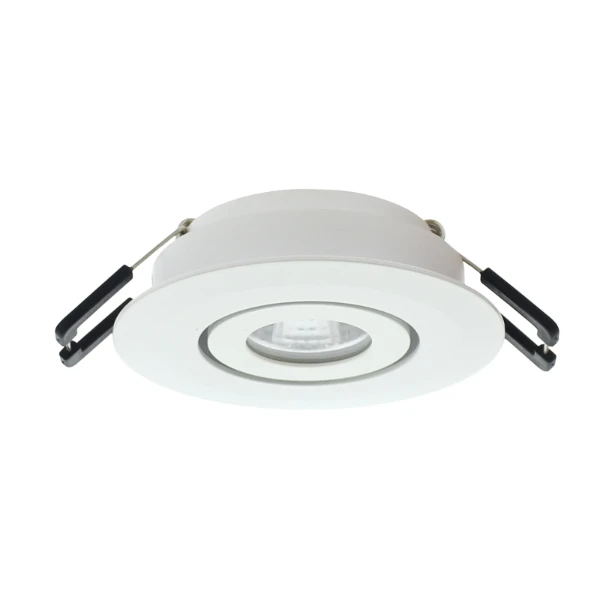

863710 - LCB-SPOT-62RB-EWW-WH
Package type: CT á 1 PCE
Product specifications : 863710 - LCB-SPOT-62RB-EWW-WH
Spot
Mounting method
Built-in
Dimmable
Yes
Colour temperature (K)
2700 - 2700
Colour of light adjustable
No
(lm)
0 - 458
(lm/W)
0 - 148
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Beam angle
Medium beam 21-40°
Beam angle (°)
40
Built-in height (mm)
29 - 29
Length (mm)
62
Width (mm)
62
Height/depth (mm)
29
Outer diameter (mm)
62
Built-in width (mm)
50 - 55
Built-in diameter (mm)
50 - 55
Housing colour
White
Degree of protection (IP), front side
IP44
Other
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
No
Suitable for wall mounting
No
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Reflector
None
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
Suitable for low voltage cable system
No
Material cover
Glass transparent
(cm)
100
Light distributor
Focal lens
Light outlet
Direct
Number of poles
2
Connection type
Plug
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With presence indicator
No
None
Dimming manufacturer's proprietary system
No
None
Accessories
Variants
863702 - LCB-SPOT-62RB-EWW-RVS
2700 - 27000 - 320
0 - 103
E
27 - 27
27
50 - 60
Stainless steel
IP55
Stainless steel
Reflector
Reflector
863704 - LCB-SPOT-62RB-WW-RVS
3000 - 30000 - 320
0 - 103
E
27 - 27
27
50 - 60
Stainless steel
IP55
Stainless steel
Reflector
Reflector
863712 - LCB-SPOT-62RB-WW-WH
3000 - 30000 - 320
0 - 103
E
27 - 27
27
50 - 60
White
IP44
Aluminium
Reflector
Reflector
