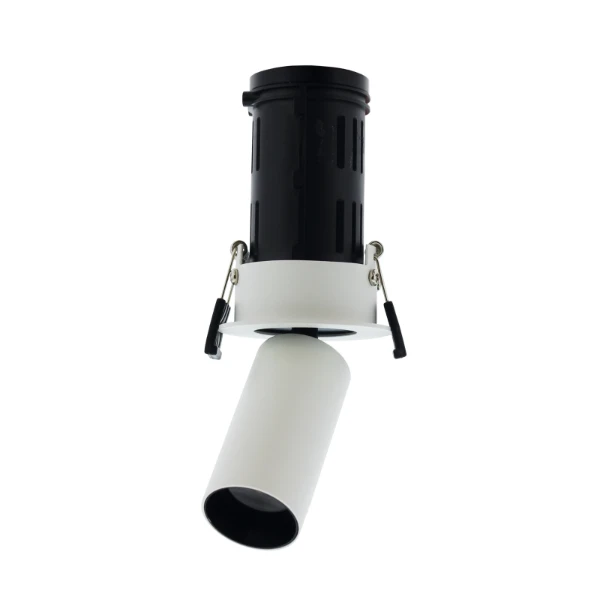

863778 - LCB-SIB-PA-W-WW
Package type: CT á 1 PCE
Product specifications : 863778 - LCB-SIB-PA-W-WW
Spot
Mounting method
Built-in
Colour temperature (K)
3000 - 3000
Colour of light adjustable
No
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
(lm)
0 - 415
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Beam angle
Medium beam 21-40°
Beam angle (°)
35
Built-in height (mm)
84 - 84
Built-in depth (mm)
88
Length (mm)
60
Width (mm)
30
Height/depth (mm)
89
Outer diameter (mm)
54
Built-in diameter (mm)
49 - 50
Housing colour
White
Degree of protection (IP), front side
IP20
IP20
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
(cm)
100
Light distributor
Focal lens
Light outlet
Direct
Number of poles
2
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With presence indicator
No
None
Dimming manufacturer's proprietary system
No
None
Dimmable
Yes
Accessories
Similar product
Variants
863600 - LCB-IBM-NW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
4000 - 4000
50
Lens
29
IP44
C
3.1 - 3.1
Neutral white 3300-5300 K
0 - 458
14
48
32 - 32
863601 - LCB-IBM-EWW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
2700 - 2700
50
Reflector
25
IP44
E
3.1 - 3.1
Warm white <3300 K
0 - 320
14
48
32 - 32
863602 - LCB-IBM-WW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
3000 - 3000
50
Reflector
25
IP44
E
3.1 - 3.1
Warm white <3300 K
0 - 320
14
48
32 - 32
