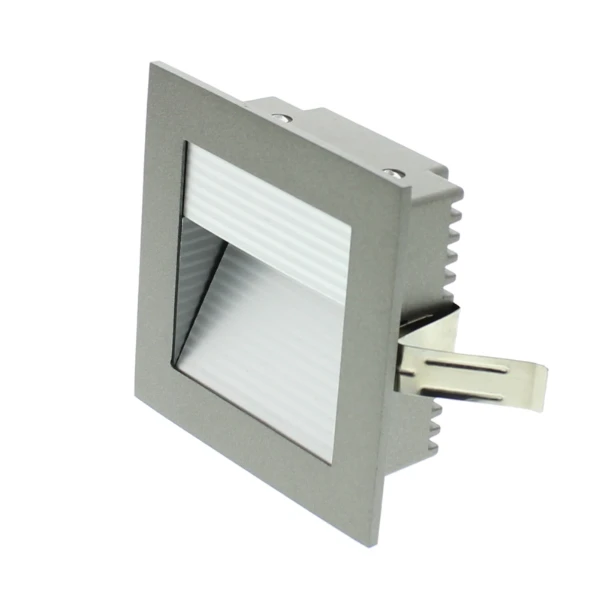

876670 - LED-IB-MR-GR
Package type: CT á 1 PCE
Product specifications : 876670 - LED-IB-MR-GR
Colour of light
Green
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Nominal voltage (V)
3.1 - 3.1
Nominal current (mA)
0 - 700
Housing material
Aluminium
Housing colour
Grey
Suitable for light line configuration
No
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Indirect
Length (mm)
90
Width (mm)
90
Height/depth (mm)
40
Built-in length (mm)
70
Built-in width (mm)
70
Built-in height/depth (mm)
40
With movement sensor
No
With light sensor
No
Max. system power (W)
2.3
With air slots
No
Voltage type
DC
Dimming potentiometer (integrated)
No
Light distributor
Reflector
Suitable for lamp power (W)
2.3 - 2.3
Type of wiring
Ending
Number of poles
2
Connection type
Plug
Exchangeable control gear
Yes
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Dimmable
Yes
(lm/W)
0 - 48
(lm)
0 - 100
With presence indicator
No
IP20
Degree of protection (IP), front side
IP20
None
Suitable for clamp-mounting
Yes
With mounting material
Yes
With switch
No
Colour of light
Green
Accessories
Variants
863660 - LCB-IB-MR-NW
White8.8 - 8.8
0 - 350
4000 - 4000
Aluminium
3.1
3.1 - 3.1
E
0 - 103
0 - 320
Blue
863661 - LCB-IB-MR-EWW
White8.8 - 8.8
0 - 350
2700 - 2700
Aluminium
3.1
3.1 - 3.1
E
0 - 103
0 - 320
Red
863662 - LCB-IB-MR-WW
White8.8 - 8.8
0 - 350
3000 - 3000
Aluminium
3.1
3.1 - 3.1
E
0 - 103
0 - 320
Green
