▶ Butt Connector

220020 - C-2

Package type: BX á 100 PCE

Ongeïsol. stootverbinder, 2,50 mm2

Product specifications : 220020 - C-2

Nominal cross section (mm²)
2.5 - 2.5
Min. AWG-size
14
Max. AWG-size
14
Model
UL model
Sleeve form
Long
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
None
Voltage level
Up to 600 V
Type of connection
Percussion connector
For pull protected connections
No
Oil stop/centre bar
No
Nominal current (A)
30
Max. temperature (°C)
120

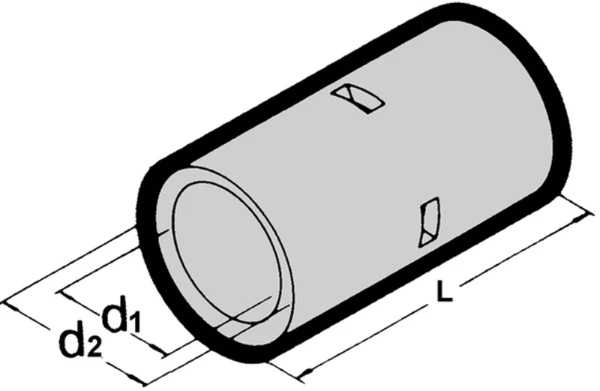

(mm)
15
(mm)
2.3
(mm)
3.9
No

Variants

220010 - C-1.25
1.25 - 1.25
16
16
18
15
1.7
3.3
220030 - C-5.5
6 - 6
12
10
50
15
3.4
5.4
220040 - C-8
10 - 10
8
8
70
21
4.5
7
220050 - C-14
16 - 16
6
6
95
21
5.8
8.9
220060 - C-22
25 - 25
4
4
125
26
7.7
11.3
220070 - C 38
35 - 35
2
2
170
32
9.4
13.2
220080 - C-50
50 - 50
1
1
230
36
11.4
15.3
220090 - C-70
70 - 70
00
00
265
37
13.3
17.5
220100 - C-95
95 - 95
000
000
310
38
14.5
19.5
