▶ Venice
863737 - LCB-SPOT-W-NW
Package type: CT á 1 PCE

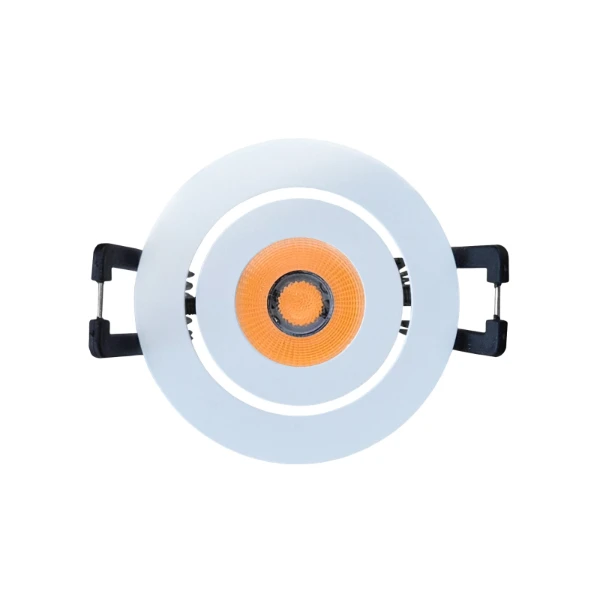

Product specifications : 863737 - LCB-SPOT-W-NW
Spot
Mounting method
Built-in
Colour temperature (K)
4000 - 4000
Colour of light adjustable
No
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
(lm)
0 - 320
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Beam angle
Medium beam 21-40°
Beam angle (°)
40
Built-in depth (mm)
27
Height/depth (mm)
27
Outer diameter (mm)
50
Built-in diameter (mm)
45 - 48
Housing colour
White
Degree of protection (IP), front side
IP44
Other
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Moulded-on
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Reflector
(cm)
100
Light distributor
Reflector
Light outlet
Direct
Number of poles
2
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With mounting bracket
No
With presence indicator
No
Dimmable
Yes
Accessories
Variants
863640 - LCB-SPOT-NW
4000 - 4000No
0 - 350
8.8 - 8.8
3.1
0 - 320
E
Medium beam 21-40°
40
27
27
Aluminium
3.1 - 3.1
Untreated
Diffuser lens/optic/panel
Push-in clamp
863641 - LCB-SPOT-EWW
2700 - 2700No
0 - 350
8.8 - 8.8
3.1
0 - 320
E
Medium beam 21-40°
40
27
27
Aluminium
3.1 - 3.1
Lacquered
Diffuser lens/optic/panel
Push-in clamp
863642 - LCB-SPOT-WW
3000 - 3000No
0 - 350
8.8 - 8.8
3.1
0 - 320
E
Medium beam 21-40°
40
27
27
Aluminium
3.1 - 3.1
Diffuser lens/optic/panel
Push-in clamp
