▶ LED Track lights

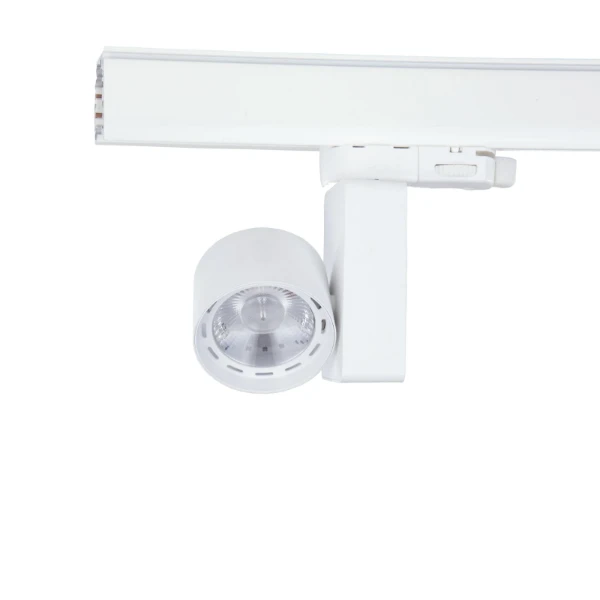

868099 - LM-WBTSP-7W-15WW
Package type: CT á 1 PCE
Product specifications : 868099 - LM-WBTSP-7W-15WW
Dimmable
Yes
Colour temperature (K)
3000 - 3000
Colour of light adjustable
No
Dimming phase cut-off
Yes
(lm)
0 - 650
(lm/W)
0 - 93
Nominal voltage (V)
230 - 230
Voltage type
AC
Max. system power (W)
6.9
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Beam angle
Narrow beam 11 - 20°
Beam angle (°)
15
Length (mm)
60
Width (mm)
94
Height/depth (mm)
106
(mm)
44
Outer diameter (mm)
44
Housing colour
White
Degree of protection (IP), front side
IP20
IP20
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
Yes
Suitable for wall mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
6.9 - 6.9
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
Adjustability
Rotating and swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
Yes
Colour of light
White
Housing material
Aluminium
Reflector
None
Light sharing
Symmetric
Colour rendering index CRI
90-100
Optics
Lens
Suitable for low voltage cable system
No
Yes
Surface protection
Powder coating
Surface brushed
No
Dimming 1-10 V
No
Light distributor
Focal lens
Light outlet
Direct
Number of poles
3
Connection type
Busbar adapter
With mounting bracket
No
With presence indicator
No
Dimming DALI-2
No
