860245 - LD-24-DALI-16
Package type: BG á 1 PCE
Product specifications : 860245 - LD-24-DALI-16
Universal
Protocol
DALI
Model
Dynamic
Output power (W)
1 - 16
Housing
Plastic housing
Suitable for constant voltage
Yes
Output voltage (V)
24 - 24
Input voltage (V)
220 - 240
Suitable for DC-voltage (primary side)
No
Suitable for constant current
No
No
Degree of protection (IP)
IP20
Suitable for outdoor use
No

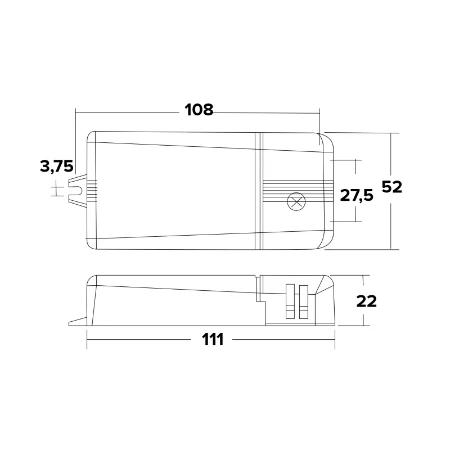

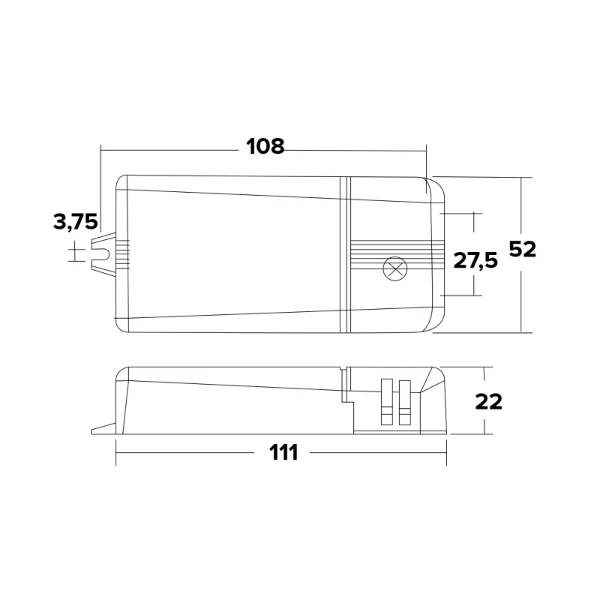

Length (mm)
110.4
Width (mm)
52
Height (mm)
22
Rated frequency (Hz)
50 - 60
0.92
Ambient temperature (°C)
-20 - +45
White
No
Number of channels
1
Frequency input voltage (Hz)
50 - 60
Independently operating
Yes
Yes
Overload protection
Yes
Yes
Overtemperature protection
Yes
Yes
Yes
Short-circuit protected
Yes
No
None
Dimmable
Yes
Operation by Bluetooth
No
Dimming DALI-2
Yes
IFTTT support available
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
Dimming potentiometer (integrated)
No
Compatible with Apple HomeKit
No
Dimming RF
No
Dimming manufacturer's proprietary system
No
Dimming 1-10 V
No
Dimming LineSwitch
No
Dimming phase cut-on
No
Dimming DALI
Yes
Dimming programmable
Yes
Dimming DMX
No
Dimming mains voltage modulation
No
Constant light output (CLO)
No
Dimming Touch and Dim
No
Dimming DSI
No
Dimming Zigbee
No
Dimming phase cut-off
No
Dimming 0-10 V
No
No
