863744 - LCB-SPOT-Z-NW

Package type: CT á 1 PCE

863744 - LCB-SPOT-Z-NW

Product specifications : 863744 - LCB-SPOT-Z-NW

Spot
Mounting method
Built-in
Dimmable
Yes
Colour temperature (K)
4000 - 4000
Colour of light adjustable
No
Luminous flux (lm)
0 - 320
Rated luminous flux according to IEC 62722-2-1 (lm)
320
(lm)
0 - 320
(lm/W)
0 - 103
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Beam angle
Medium beam 21-40°
Beam angle (°)
40
Built-in height (mm)
27 - 27
Height/depth (mm)
27

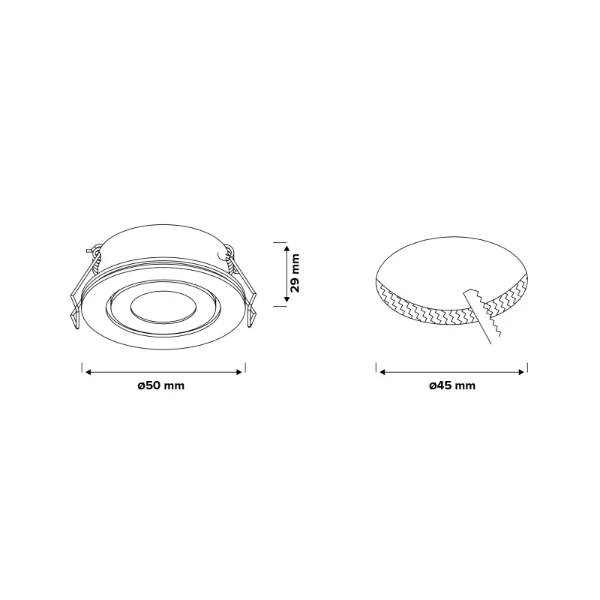

Outer diameter (mm)
50
Built-in diameter (mm)
45 - 48
Housing colour
Black
Degree of protection (IP), front side
IP44
Other
Degree of protection (IP)
IP44
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Housing material
Aluminium
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Reflector
Surface protection
Lacquered
Material cover
Glass transparent
(cm)
100
Light distributor
Reflector
Reflector colour
Silver
Light outlet
Direct
Number of poles
2
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With presence indicator
No

Variants

863640 - LCB-SPOT-NW
4000 - 4000
No
10 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
Aluminium
3.1 - 3.1
Other
Reflector
Untreated
Diffuser lens/optic/panel
Push-in clamp
863641 - LCB-SPOT-EWW
2700 - 2700
No
10 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
Aluminium
3.1 - 3.1
Other
Reflector
Untreated
Diffuser lens/optic/panel
Push-in clamp
863642 - LCB-SPOT-WW
3000 - 3000
No
10 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
Aluminium
3.1 - 3.1
None
Reflector
Untreated
Diffuser lens/optic/panel
Push-in clamp
863643 - LCB-SPOT-DTW
2200 - 3000
Continuously variable
10 - 219
219
0 - 219
0 - 73
0 - 500
5.6 - 5.6
3
G
Wide beam 41-80°
45
27 - 27
26
Aluminium
3 - 3
None
Reflector
Untreated
Diffuser lens/optic/panel
Other
863734 - LCB-SPOT-W-DTW
2200 - 3000
Continuously variable
0 - 219
219
0 - 219
0 - 73
0 - 500
5.6 - 5.6
3
G
Wide beam 41-80°
45
26 - 27
26
White
3 - 3
Reflector
Lacquered
Diffuser lens/optic/panel
Other
863735 - LCB-SPOT-W-EWW
2700 - 2700
No
0 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
White
3.1 - 3.1
Reflector
Lacquered
Reflector
Plug
863737 - LCB-SPOT-W-NW
4000 - 4000
No
0 - 458
458
0 - 458
0 - 148
0 - 350
8.8 - 8.8
3.1
C
Medium beam 21-40°
40
29 - 29
29
White
3.1 - 3.1
Lens
Lacquered
Focal lens
Plug
863738 - LCB-SPOT-W-WW
3000 - 3000
No
0 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
White
3.1 - 3.1
Reflector
Lacquered
Reflector
863742 - LCB-SPOT-Z-WW
3000 - 3000
No
0 - 458
458
0 - 458
0 - 148
0 - 350
8.8 - 8.8
3.1
C
Medium beam 21-40°
40
29 - 29
29
Black
3.1 - 3.1
Reflector
Lacquered
Focal lens
863743 - LCB-SPOT-Z-EWW
2700 - 2700
No
0 - 320
320
0 - 320
0 - 103
0 - 350
8.8 - 8.8
3.1
E
Medium beam 21-40°
40
27 - 27
27
Black
3.1 - 3.1
Reflector
Reflector
