▶ Compact spots

863750 - LCB-SIB-PI-ZW-EWW

Package type: CT á 1 PCE

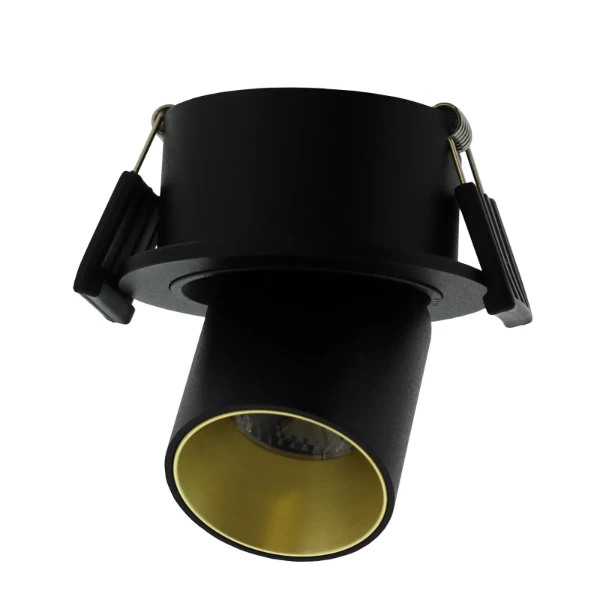

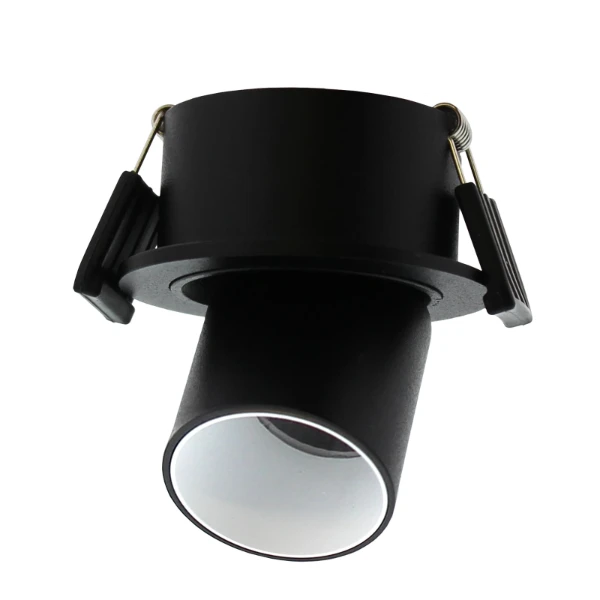

Piran COB, richtbare semi inbouwspot, Zwart, 3.1W, 350mA, 2700K

Product specifications : 863750 - LCB-SIB-PI-ZW-EWW

Spot
Mounting method
Built-in
Dimmable
Yes
Colour temperature (K)
2700 - 2700
Colour of light adjustable
No
Luminous flux (lm)
0 - 400
Rated luminous flux according to IEC 62722-2-1 (lm)
400
(lm)
0 - 400
(lm/W)
0 - 129
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Beam angle
Medium beam 21-40°
Beam angle (°)
35
Built-in height (mm)
23 - 23
Length (mm)
30
Width (mm)
30
Height/depth (mm)
53
Outer diameter (mm)
50
Built-in diameter (mm)
43 - 48
Housing colour
Black
Degree of protection (IP), front side
IP20
IP20
Degree of protection (IP)
IP20
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
(cm)
100
Light distributor
Focal lens
Light outlet
Direct
Number of poles
2
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With presence indicator
No
Dimming manufacturer's proprietary system
No
None

Variants

863010 - BONNITA-15-EWW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
2700 - 2700
100
Reflector
50
50
50
62
50
IP20
F
15 - 15
6.6 - 6.6
Warm white <3300 K
0 - 79
9.4 - 9.4
863012 - BONNITA-15-WW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
3000 - 3000
100
Reflector
50
50
50
62
50
IP20
F
15 - 15
6.6 - 6.6
Warm white <3300 K
0 - 79
9.4 - 9.4
863014 - BONNITA-15-NW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
4000 - 4000
100
Reflector
50
50
50
62
50
IP20
F
15 - 15
6.6 - 6.6
Neutral white 3300-5300 K
0 - 79
9.4 - 9.4
863020 - BONNITA-40-EWW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
2700 - 2700
100
Reflector
50
50
50
62
50
IP20
F
40 - 40
6.6 - 6.6
Warm white <3300 K
0 - 79
9.4 - 9.4
863022 - BONNITA-40-WW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
3000 - 3000
100
Reflector
50
50
50
62
50
IP20
F
40 - 40
6.6 - 6.6
Warm white <3300 K
0 - 79
9.4 - 9.4
863024 - BONNITA-40-NW
Aluminium
0 - 700
9.4 - 9.4
0 - 530
0 - 530
4000 - 4000
100
Reflector
50
50
50
62
50
IP20
F
40 - 40
6.6 - 6.6
Neutral white 3300-5300 K
0 - 79
9.4 - 9.4
863025 - BONNITA-40-DTW
Aluminium
0 - 350
18 - 18
0 - 530
0 - 458
1800 - 3000
100
Reflector
50
50
50
62
50
IP20
F
40 - 40
6.6 - 6.6
Warm white <3300 K
0 - 79
18 - 18
863571 - LCB-IBM-W-EWW
White
0 - 350
8.8 - 8.8
0 - 458
0 - 320
2700 - 2700
50
Lens
43.5
43.5
43.5
29
43.5
IP44
C
40 - 40
3.1 - 3.1
Warm white <3300 K
0 - 148
8.8 - 8.8
863572 - LCB-IBM-W-NW
White
0 - 350
8.8 - 8.8
0 - 320
0 - 320
4000 - 4000
50
Reflector
43.5
43.5
43.5
25
43.5
IP20
E
40 - 40
3.1 - 3.1
Neutral white 3300-5300 K
0 - 103
8.8 - 8.8
863573 - LCB-IBM-W-WW
White
0 - 350
8.8 - 8.8
0 - 320
3000 - 3000
50
Reflector
43.5
43.5
43.5
25
43.5
IP20
E
40 - 40
3.1 - 3.1
Warm white <3300 K
0 - 103
8.8 - 8.8
