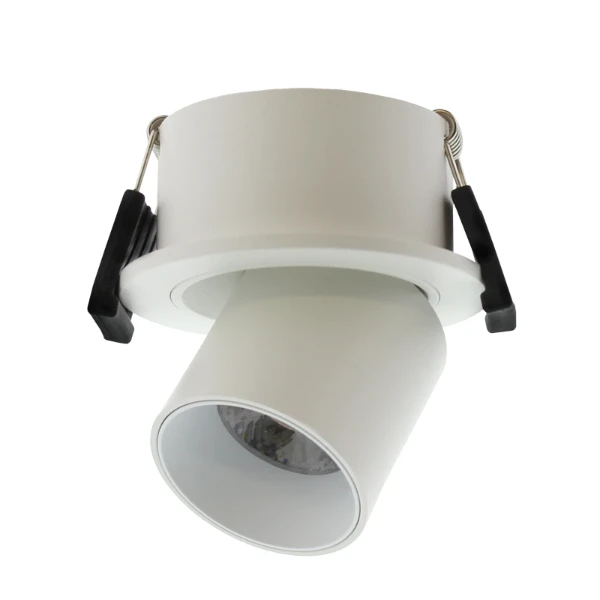

863756 - LCB-SIB-PI-W-EWW
Package type: CT á 1 PCE
Product specifications : 863756 - LCB-SIB-PI-W-EWW
Spot
Mounting method
Built-in
Colour temperature (K)
2700 - 2700
Colour of light adjustable
No
Nominal current (mA)
0 - 350
Nominal voltage (V)
8.8 - 8.8
Voltage type
DC
Max. system power (W)
3.1
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Beam angle
Medium beam 21-40°
Beam angle (°)
35
Built-in depth (mm)
23
Length (mm)
30
Width (mm)
30
Height/depth (mm)
53
Outer diameter (mm)
50
Built-in diameter (mm)
43 - 48
Housing colour
White
Degree of protection (IP), front side
IPX0
IP20
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Continuously variable
Suitable for lamp power (W)
3.1 - 3.1
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Lamp type
LED not exchangeable
With light source
Yes
Electrical connection with connector system
Yes
Type of control gear
LED operating device current-controlled
With control gear
No
Colour of light
White
Housing material
Aluminium
Light sharing
Symmetric
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Optics
Lens
(cm)
100
Light distributor
Focal lens
Light outlet
Direct
Number of poles
2
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Beam angle adjustable
No
With presence indicator
No
Dimming manufacturer's proprietary system
No
None
Dimmable
Yes
Accessories
Similar product
Variants
863600 - LCB-IBM-NW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
4000 - 4000
White
50
40 - 40
55
IP20
E
3.1 - 3.1
Neutral white 3300-5300 K
0 - 320
14
48
32 - 32
863601 - LCB-IBM-EWW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
2700 - 2700
White
50
40 - 40
55
IP44
E
3.1 - 3.1
Warm white <3300 K
0 - 320
14
48
32 - 32
863602 - LCB-IBM-WW
Aluminium0 - 350
8.8 - 8.8
8.8 - 8.8
3000 - 3000
Other
50
40 - 40
55
IP44
E
3.1 - 3.1
Warm white <3300 K
0 - 320
14
48
32 - 32
