▶ Butt Connector

220140 - C-240

Package type: BX á 10 PCE

Ongeïsol. stootverbinder, 240 mm2

Product specifications : 220140 - C-240

Nominal cross section (mm²)
240 - 240
Min. AWG-size
500 kcmil
Max. AWG-size
500 kcmil
Model
UL model
Sleeve form
Long
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
Material
Copper
Surface protection
Tinned
Insulation
None
Voltage level
Up to 600 V
Type of connection
Percussion connector
For pull protected connections
No
Oil stop/centre bar
No
Nominal current (A)
545
Max. temperature (°C)
120

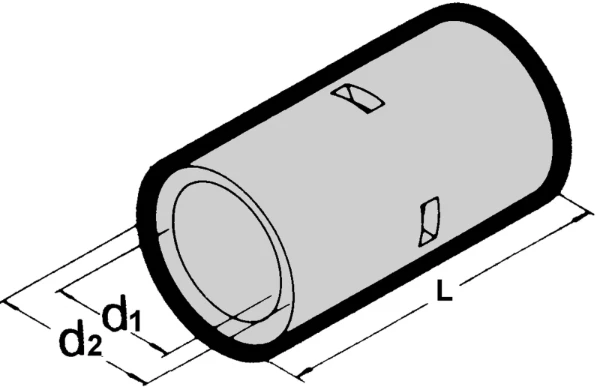

(mm)
63
(mm)
24
(mm)
32.4
No

Variants

220010 - C-1.25
1.25 - 1.25
16
16
18
15
1.7
3.3
220020 - C-2
2.5 - 2.5
14
14
30
15
2.3
3.9
220030 - C-5.5
6 - 6
12
10
50
15
3.4
5.4
220040 - C-8
10 - 10
8
8
70
21
4.5
7
220050 - C-14
16 - 16
6
6
95
21
5.8
8.9
220060 - C-22
25 - 25
4
4
125
26
7.7
11.3
220070 - C 38
35 - 35
2
2
170
32
9.4
13.2
220080 - C-50
50 - 50
1
1
230
36
11.4
15.3
220090 - C-70
70 - 70
00
00
265
37
13.3
17.5
220100 - C-95
95 - 95
000
000
310
38
14.5
19.5
