Connection techn.

▶ Blade Terminal

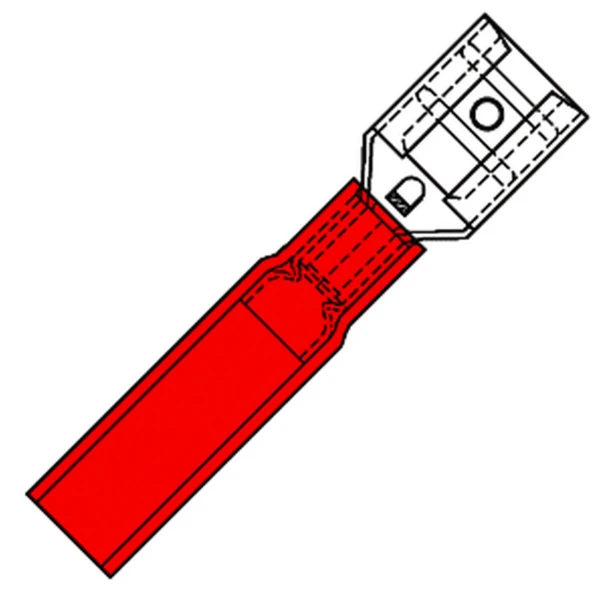

130100 - HSK SP1507FL

Package type: BX á 50 PCE

Waterdichte föhnvlakstekerhuls 6,3x0,8mm, 0,5-1,5 mm2

Product specifications : 130100 - HSK SP1507FL

Model
Bushing
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
Plug dimensions
Flat 6.3x0.8 mm
Insulation
Partially isolated
Colour insulation
Red
Material insulation
Polyethylene (PE)
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No
(mm)
34
(mm)
6.3
(mm)
5.5
Yes
Yes
No
(°C)
105
(V)
300
Watertight
Yes
Reel/roll packaging
No

Variants

130080 - HSK SP1504HA
Plug
0.34 - 1.66
22
16
Round 4 mm
Fully isolated
Red
10
35
4
4
130090 - HSK SP1504HO
Bushing
0.34 - 1.66
22
16
Round 4 mm
Fully isolated
Red
10
33
4
4
130110 - HSK SP1507H
Plug
0.34 - 1.66
22
16
Flat 6.3x0.8 mm
Partially isolated
Red
10
35
6.3
5.5
130420 - HSK-SP2504HA
Plug
1.04 - 2.66
16
14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130430 - HSK-SP2504HO
Bushing
1.04 - 2.66
16
14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130460 - HSK-SP2507FL
Bushing
1.04 - 2.66
16
14
Flat 6.3x0.8 mm
Partially isolated
Blue
15
34
6.3
6
130480 - HSK-SP2507H
Plug
1.04 - 2.66
16
14
Flat 6.3x0.8 mm
Partially isolated
Blue
15
32
6.3
6
130990 - HSK-SP4607H
Plug
2.63 - 6.64
12
10
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
131000 - HSK-SP4607FL
Bushing
2.63 - 6.64
12
10
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
