▶ Blade Terminal

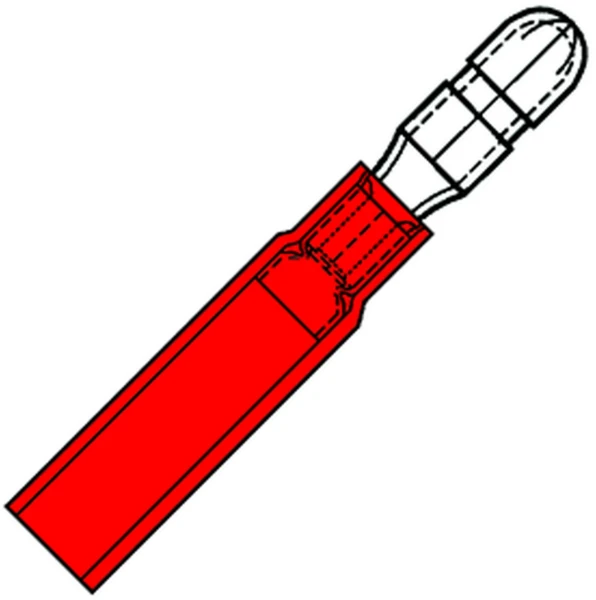

130080 - HSK SP1504HA

Package type: BX á 50 PCE

Waterdichte föhnrondsteker 4mm, 0,5-1,5 mm2

Product specifications : 130080 - HSK SP1504HA

Insulated
Yes
Material insulation
Polyethylene (PE)
Model
Plug
Nominal cross section (mm²)
0.34 - 1.66
Min. AWG-size
22
Max. AWG-size
16
AWG-range
22 - 16
Plug dimensions
Round 4 mm
Insulation
Fully isolated
Colour insulation
Red
Material
Brass
Surface protection
Tinned
Max. current (Imax) (A)
10
Halogen free
Yes
No
Transparent
No
(mm)
35
(mm)
4
(mm)
4
Yes
Yes
No
(°C)
105
(V)
300
Watertight
Yes
Reel/roll packaging
No
Packaging
Bag

Variants

130090 - HSK SP1504HO
Bushing
0.34 - 1.66
22
16
22 - 16
Round 4 mm
Fully isolated
Red
10
33
4
4
130100 - HSK SP1507FL
Bushing
0.34 - 1.66
22
16
22 - 16
Flat 6.3x0.8 mm
Partially isolated
Red
10
34
6.3
5.5
130110 - HSK SP1507H
Plug
0.34 - 1.66
22
16
22 - 16
Flat 6.3x0.8 mm
Partially isolated
Red
10
35
6.3
5.5
130420 - HSK-SP2504HA
Plug
1.04 - 2.66
16
14
16 - 14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130430 - HSK-SP2504HO
Bushing
1.04 - 2.66
16
14
16 - 14
Round 4 mm
Fully isolated
Blue
15
40.5
4
4
130460 - HSK-SP2507FL
Bushing
1.04 - 2.66
16
14
16 - 14
Flat 6.3x0.8 mm
Partially isolated
Blue
15
34
6.3
6
130480 - HSK-SP2507H
Plug
1.04 - 2.66
16
14
16 - 14
Flat 6.3x0.8 mm
Partially isolated
Blue
15
32
6.3
6
130990 - HSK-SP4607H
Plug
2.63 - 6.64
12
10
13 - 9
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
131000 - HSK-SP4607FL
Bushing
2.63 - 6.64
12
10
13 - 9
Flat 6.3x0.8 mm
Partially isolated
Yellow
24
35
6.3
8.1
