▶ IP68 boxes and connectors

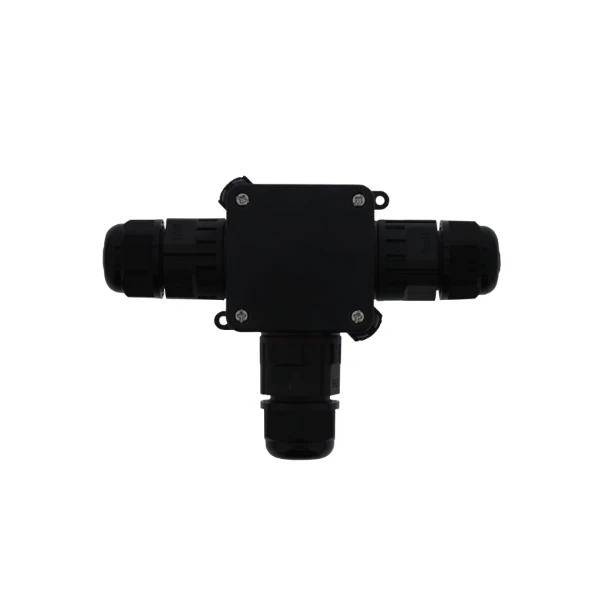

160210 - KCT-IP68-3P-6-14,5
Package type: BG á 1 PCE
Product specifications : 160210 - KCT-IP68-3P-6-14,5
Contact type
Other
Diameter connector (mm)
31
Type of housing
Variable
Rated current In (A)
24
Ambient temperature (°C)
-20 - +110
Rated voltage (V)
450
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.2 - 2.5
Connectable conductor cross section solid-core (mm²)
0.2 - 2.5
Type of electric connection
Spring clamp connection
Material of contact surface
Brass
Housing material
Plastic
Locking mechanism
Gland nut
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Degree of protection (IP), mounted
IP68
Number of data contacts
0
Number of power contacts
3
Number of control contacts
0
For cable outer diameter (mm)
6 - 14.5
Material thread ring
Plastic
Screened
No
With status indication
No
