Connection techn.

▶ IP68 boxes and connectors

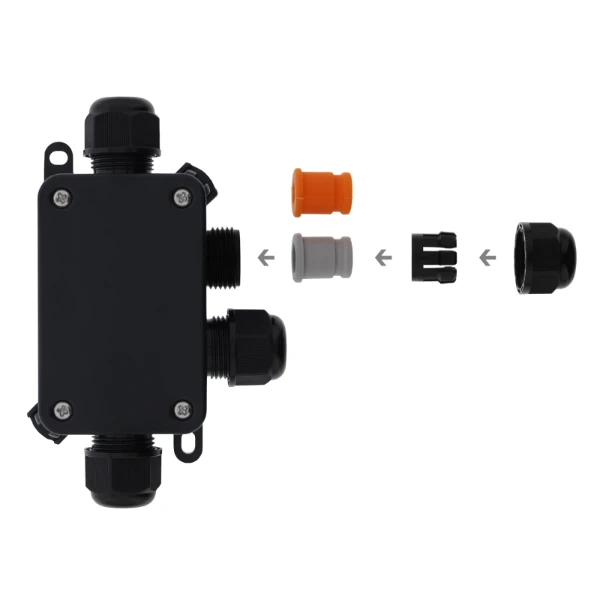

160340 - KB-IP68-4V-6-11

Package type: BG á 1 PCE

160340 - KB-IP68-4V-6-11

Product specifications : 160340 - KB-IP68-4V-6-11

Shape
Rectangular
Number of inlets
4
Width (mm)
105
Depth (mm)
35
Length (mm)
140
Material
Plastic
Mounting method
Wall-/ceiling mounting
Inlet from the rear
No
Tackable
No
Type of housing feed-through
Thread
Halogen free
Yes
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP68
Cover attachment
Screwed
Cover model
Other
With casting compound
No
Sealable
No
Rated insulation voltage Ui (V)
450
With screening
No
Weatherproof
Yes
Operating temperature (°C)
-20 - +100
Explosion-tested version
No
Mounting in the soil
Yes
Mounting under water
No
Transparent cover
No
With strain relief
Yes
4
RAL-number (similar)
9005
No

Variants

160100 - KCI-IP68-2P-4-8
21
Straight
17.5
0.2 - 1.5
0.2 - 1.5
0.2 - 1.5
2
4 - 8
3
3
160110 - KCI-IP68-3/5P-6-14,5
31
Straight
24
0.2 - 2.5
0.2 - 2.5
0.2 - 2.5
5
6 - 14.5
160200 - KCT-IP68-3P-3-11
26
Variable
17.5
0.2 - 1.5
0.2 - 1.5
0.2 - 1.5
3
3 - 11
6
6
160210 - KCT-IP68-3P-6-14,5
31
Variable
24
0.2 - 2.5
0.2 - 2.5
0.2 - 2.5
3
6 - 14.5
Square
8
145
50
145
8
160330 - KB-IP68-3V-6-11
Round
12
Other
Other
160360 - KB-IP68-6V-6-11
160380 - KB-IP68-8V-6-11
160410 - PLUG-IP68-M16/20
