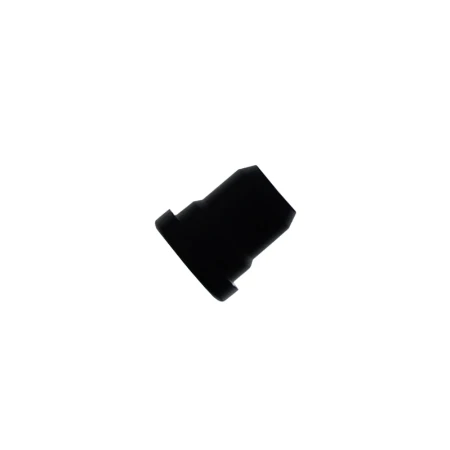

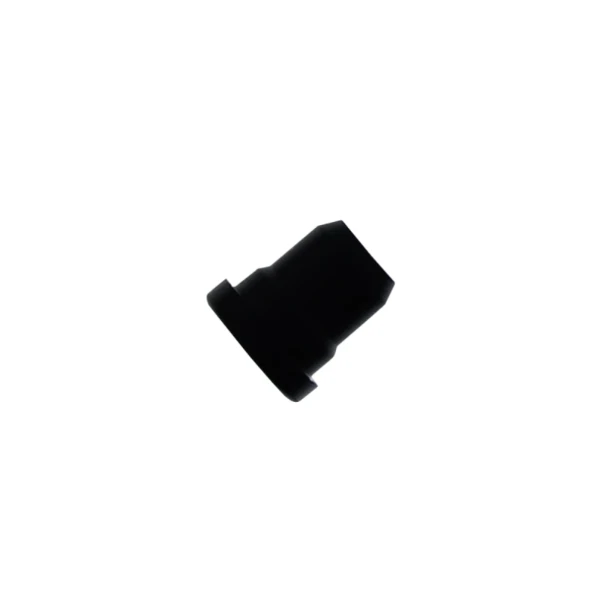

160410 - PLUG-IP68-M16/20

Package type: BG á 5 PCE

160410 - PLUG-IP68-M16/20

Product specifications : 160410 - PLUG-IP68-M16/20

No
Shape
Round
Depth (mm)
12
Material
Other
Inlet from the rear
No
Diameter (mm)
13.5
Tackable
No
Type of housing feed-through
Other
Halogen free
Yes
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP68
With casting compound
No
Sealable
No
Rated insulation voltage Ui (V)
450
With screening
No
Weatherproof
Yes
Operating temperature (°C)
-20 - +100
Explosion-tested version
No
Mounting in the soil
Yes
Mounting under water
No
RAL-number (similar)
9005
No

Variants

160100 - KCI-IP68-2P-4-8
4 - 8
2
Yes
21
Straight
17.5
0.2 - 1.5
0.2 - 1.5
0.2 - 1.5
2
Rectangular
105
35
140
Plastic
Thread
3
160110 - KCI-IP68-3/5P-6-14,5
6 - 14.5
2
Yes
31
Straight
24
0.2 - 2.5
0.2 - 2.5
0.2 - 2.5
5
Rectangular
105
35
140
Plastic
Thread
4
160200 - KCT-IP68-3P-3-11
3 - 11
3
Yes
26
Variable
17.5
0.2 - 1.5
0.2 - 1.5
0.2 - 1.5
3
Rectangular
105
35
140
Plastic
Thread
6
160210 - KCT-IP68-3P-6-14,5
6 - 14.5
3
Yes
31
Variable
24
0.2 - 2.5
0.2 - 2.5
0.2 - 2.5
3
Square
145
50
145
Plastic
Thread
8
160330 - KB-IP68-3V-6-11
6 - 11
3
Round
12
Other
Other
160340 - KB-IP68-4V-6-11
6 - 11
4
160360 - KB-IP68-6V-6-11
6 - 11
6
160380 - KB-IP68-8V-6-11
6 - 11
8
